glasscore pick class More...

#include <Pick.h>

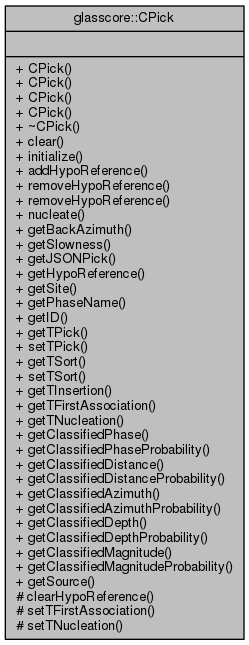

Collaboration diagram for glasscore::CPick:

Public Member Functions
	CPick ()
	CPick default constructor. More...

	CPick (std::shared_ptr< CSite > pickSite, double pickTime, std::string pickIdString, double backAzimuth, double slowness)
	CPick advanced constructor. More...

	CPick (std::shared_ptr< CSite > pickSite, double pickTime, std::string pickIdString, std::string source, double backAzimuth, double slowness, std::string phase, double phaseProb, double distance, double distanceProb, double azimuth, double azimuthProb, double depth, double depthProb, double magnitude, double magnitudeProb)
	CPick advanced constructor. More...

	CPick (std::shared_ptr< json::Object > pick, CSiteList *pSiteList)
	CPick advanced constructor. More...

	~CPick ()
	CPick destructor. More...

void	clear ()
	CPick clear function. More...

bool	initialize (std::shared_ptr< CSite > pickSite, double pickTime, std::string pickIdString, std::string source, double backAzimuth, double slowness, std::string phase, double phaseProb, double distance, double distanceProb, double azimuth, double azimuthProb, double depth, double depthProb, double magnitude, double magnitudeProb)
	CPick initialization function. More...

void	addHypoReference (std::shared_ptr< CHypo > hyp, bool force=false)
	Add hypo reference to this pick. More...

void	removeHypoReference (std::shared_ptr< CHypo > hyp)
	Remove hypo reference to this pick. More...

void	removeHypoReference (std::string pid)
	Remove hypo specific reference to this pick by id. More...

bool	nucleate (CPickList *parentThread)
	Attempt to nucleate new hypo based on the addition of this pick. More...

double	getBackAzimuth () const
	Get the optional back azimuth related to this pick. More...

double	getSlowness () const
	Get the optional slowness related to this pick. More...

const std::shared_ptr< json::Object > &	getJSONPick () const
	Get input JSON pick message. More...

const std::shared_ptr< CHypo >	getHypoReference () const
	Get the current hypo referenced by this pick. More...

const std::shared_ptr< CSite >	getSite () const
	Get the site for this pick. More...

const std::string &	getPhaseName () const
	Get the phase name for this pick. More...

const std::string &	getID () const
	Get the ID of this pick. More...

double	getTPick () const
	Get the arrival time for this pick. More...

void	setTPick (double tPick)
	Set the arrival time for this pick. More...

double	getTSort () const
	Get the sorting time for this pick. More...

void	setTSort (double newTSort)
	Set the sorting time for this pick. More...

double	getTInsertion () const
	Get the insertion time for this pick. More...

double	getTFirstAssociation () const
	Get the first assoc time for this pick. More...

double	getTNucleation () const
	Get the nucleation time for this pick. More...

const std::string &	getClassifiedPhase () const
	Get the classified phase for this pick. More...

double	getClassifiedPhaseProbability () const
	Get the classified phase probability for this pick. More...

double	getClassifiedDistance () const
	Get the classified distance for this pick. More...

double	getClassifiedDistanceProbability () const
	Get the classified distance probability for this pick. More...

double	getClassifiedAzimuth () const
	Get the classified azimuth for this pick. More...

double	getClassifiedAzimuthProbability () const
	Get the classified azimuth probability for this pick. More...

double	getClassifiedDepth () const
	Get the classified depth for this pick. More...

double	getClassifiedDepthProbability () const
	Get the classified depth probability for this pick. More...

double	getClassifiedMagnitude () const
	Get the classified magnitude for this pick. More...

double	getClassifiedMagnitudeProbability () const
	Get the classified magnitude probability for this pick. More...

const std::string &	getSource () const
	Get the source for this pick. More...

Protected Member Functions
void	clearHypoReference ()
	Remove hypo reference to this pick. More...

void	setTFirstAssociation ()
	Set the first-assoc time for this pick to Now. More...

void	setTNucleation ()
	Set the nucleation time for this pick to Now. More...

Detailed Description

glasscore pick class

The CPick class is the class that encapsulates everything necessary to represent a waveform arrival pick, including arrival time, phase id, and an unique identifier. The CPick class is also a node in the detection graph database.

CPick contains functions to support nucleation of a new event based on the pick.

CPick maintains a graph database link between it and the the site (station) the pick was made at.

CPick also maintains a vector of CHypo objects represent the graph database links between this pick and various hypocenters. A single pick may be linked to multiple hypocenters

CPick uses smart pointers (std::shared_ptr).

Constructor & Destructor Documentation

glasscore::CPick::CPick ( )

CPick default constructor.

The default constructor for the CPick class. Initializes members to default values.

glasscore::CPick::CPick	(	std::shared_ptr< CSite >	pickSite,
		double	pickTime,
		std::string	pickIdString,
		double	backAzimuth,
		double	slowness
	)

CPick advanced constructor.

An advanced constructor for the CPick class. This function initializes members to the provided values.

Parameters

pickSite	- A shared pointer to a CSite object that the pick was made at
pickTime	- A double containing the pick arrival time
pickIdString	- A std::string containing the external pick id.
backAzimuth	- A double containing the optional back azimuth, std::numeric_limits<double>::quiet_NaN() to omit
slowness	- A double containing the optional slowness, std::numeric_limits<double>::quiet_NaN() to omit

glasscore::CPick::CPick	(	std::shared_ptr< CSite >	pickSite,
		double	pickTime,
		std::string	pickIdString,
		std::string	source,
		double	backAzimuth,
		double	slowness,
		std::string	phase,
		double	phaseProb,
		double	distance,
		double	distanceProb,
		double	azimuth,
		double	azimuthProb,
		double	depth,
		double	depthProb,
		double	magnitude,
		double	magnitudeProb
	)

CPick advanced constructor.

An advanced constructor for the CPick class. This function initializes members to the provided values.

Parameters

pickSite	- A shared pointer to a CSite object that the pick was made at
pickTime	- A double containing the pick arrival time
pickIdString	- A std::string containing the external pick id.
source	- A std::string containing the pick source.
backAzimuth	- A double containing the optional back azimuth, std::numeric_limits<double>::quiet_NaN() to omit
slowness	- A double containing the optional slowness, std::numeric_limits<double>::quiet_NaN() to omit
phase	- A std::string containing the optional classified phase, empty string to omit.
phaseProb	- A double containing the optional classified phase probability, std::numeric_limits<double>::quiet_NaN() to omit
distance	- A double containing the optional classified distance, std::numeric_limits<double>::quiet_NaN() to omit
distanceProb	- A double containing the optional classified distance probability, std::numeric_limits<double>::quiet_NaN() to omit
azimuth	- A double containing the optional classified azimuth, std::numeric_limits<double>::quiet_NaN() to omit
azimuthProb	- A double containing the optional classified azimuth probability, std::numeric_limits<double>::quiet_NaN() to omit
depth	- A double containing the optional classified depth, std::numeric_limits<double>::quiet_NaN() to omit
depthProb	- A double containing the optional classified depth probability, std::numeric_limits<double>::quiet_NaN() to omit
magnitude	- A double containing the optional classified magnitude, std::numeric_limits<double>::quiet_NaN() to omit
magnitudeProb	- A double containing the optional classified magnitude probability, std::numeric_limits<double>::quiet_NaN() to omit

glasscore::CPick::CPick	(	std::shared_ptr< json::Object >	pick,
		CSiteList *	pSiteList
	)

CPick advanced constructor.

An advanced constructor for the CPick class. This function initializes members to the values parsed from the provided json object and using the provided pointer to a CSiteList class to lookup the pick station.

Parameters

pick	- A shared pointer to a json::Object to containing the data to construct the pick from
pSiteList	- A pointer to the CSiteList class to use when looking up the pick station

glasscore::CPick::~CPick ( )

CPick destructor.

Member Function Documentation

void glasscore::CPick::addHypoReference	(	std::shared_ptr< CHypo >	hyp,
		bool	force = `false`
	)

Add hypo reference to this pick.

Adds a weak_ptr reference to the given hypo to this pick, representing a graph database link between this pick and a hypocenter. If the pick is already linked to a hypocenter, the new link will be ignored unless force is set to true.

Note that this pick may or may not also be included in other hypocenter pick data lists, but this pick will only link to a single hypocenter

Parameters

hyp	- A std::shared_ptr to an object containing the hypocenter to link.
force	- A boolean flag indicating whether to force the association, defaults to false.

void glasscore::CPick::clear ( )

CPick clear function.

void glasscore::CPick::clearHypoReference ( )

protected

Remove hypo reference to this pick.

Remove any existing weak_ptr reference to a hypo from this pick, breaking the graph database link between this pick and a hypocenter.

Note that this pick may or may not still be included in other hypocenter pick data lists.

double glasscore::CPick::getBackAzimuth ( ) const

Get the optional back azimuth related to this pick.

Returns: Returns a double value containing the optional back azimuth, or std::numeric_limits<double>::quiet_NaN() if no back azimuth was provided

double glasscore::CPick::getClassifiedAzimuth ( ) const

Get the classified azimuth for this pick.

Returns: Returns a double containing the pick classified azimuth

double glasscore::CPick::getClassifiedAzimuthProbability ( ) const

Get the classified azimuth probability for this pick.

Returns: Returns a double containing the pick classified azimuth probability

double glasscore::CPick::getClassifiedDepth ( ) const

Get the classified depth for this pick.

Returns: Returns a double containing the pick classified depth

double glasscore::CPick::getClassifiedDepthProbability ( ) const

Get the classified depth probability for this pick.

Returns: Returns a double containing the pick classified depth probability

double glasscore::CPick::getClassifiedDistance ( ) const

Get the classified distance for this pick.

Returns: Returns a double containing the pick classified distance

double glasscore::CPick::getClassifiedDistanceProbability ( ) const

Get the classified distance probability for this pick.

Returns: Returns a double containing the pick classified distance probability

double glasscore::CPick::getClassifiedMagnitude ( ) const

Get the classified magnitude for this pick.

Returns: Returns a double containing the pick classified magnitude

double glasscore::CPick::getClassifiedMagnitudeProbability ( ) const

Get the classified magnitude probability for this pick.

Returns: Returns a double containing the pick classified magnitude probability

const std::string & glasscore::CPick::getClassifiedPhase ( ) const

Get the classified phase for this pick.

Returns: Return a std::string containing the pick phase

double glasscore::CPick::getClassifiedPhaseProbability ( ) const

Get the classified phase probability for this pick.

Returns: Returns a double containing the pick classified phase probability

const std::shared_ptr< CHypo > glasscore::CPick::getHypoReference ( ) const

Get the current hypo referenced by this pick.

Note that this pick may or may not also be included in other hypocenter pick data lists, but this pick will only link to a single hypocenter

Returns: Return a shared_ptr to the CHypo referenced by this pick, or NULL if no hypo is referenced

const std::string & glasscore::CPick::getID ( ) const

Get the ID of this pick.

Returns: Return a std::string containing the pick ID

const std::shared_ptr< json::Object > & glasscore::CPick::getJSONPick ( ) const

Get input JSON pick message.

Returns: Return a shared_ptr to a json::Object containing the pick message

const std::string & glasscore::CPick::getPhaseName ( ) const

Get the phase name for this pick.

Returns: Return a std::string containing the pick phase name

const std::shared_ptr< CSite > glasscore::CPick::getSite ( ) const

Get the site for this pick.

Returns: Return a shared_ptr to a CSite object containing the site this pick was made at

double glasscore::CPick::getSlowness ( ) const

Get the optional slowness related to this pick.

Returns: Returns a double value containing the optional slowness, or std::numeric_limits<double>::quiet_NaN() if no slowness was provided

const std::string & glasscore::CPick::getSource ( ) const

Get the source for this pick.

Returns: Return a std::string containing the picksource

double glasscore::CPick::getTFirstAssociation ( ) const

Get the first assoc time for this pick.

Returns: Returns a double containing the time in Gregorian seconds when the pick was first associated with an event.

double glasscore::CPick::getTInsertion ( ) const

Get the insertion time for this pick.

Returns: Returns a double containing the pick insertion time into Glass in Gregorian seconds

double glasscore::CPick::getTNucleation ( ) const

Get the nucleation time for this pick.

Returns: Returns a double containing the time in Gregorian seconds when this pick was used as keystone for nucleation

double glasscore::CPick::getTPick ( ) const

Get the arrival time for this pick.

Returns: Return a double containing the pick arrival time

double glasscore::CPick::getTSort ( ) const

Get the sorting time for this pick.

Returns: Returns an double containing the pick sort time in Gregorian seconds

bool glasscore::CPick::initialize	(	std::shared_ptr< CSite >	pickSite,
		double	pickTime,
		std::string	pickIdString,
		std::string	source,
		double	backAzimuth,
		double	slowness,
		std::string	phase,
		double	phaseProb,
		double	distance,
		double	distanceProb,
		double	azimuth,
		double	azimuthProb,
		double	depth,
		double	depthProb,
		double	magnitude,
		double	magnitudeProb
	)

CPick initialization function.

Initializes pick class to provided values.

Parameters

pickSite	- A shared pointer to a CSite object that the pick was made at
pickTime	- A double containing the pick arrival time
pickIdString	- A std::string containing the external pick id.
source	- A std::string containing the pick source.
backAzimuth	- A double containing the optional back azimuth, std::numeric_limits<double>::quiet_NaN() to omit
slowness	- A double containing the optional slowness, std::numeric_limits<double>::quiet_NaN() to omit
phase	- A std::string containing the optional classified phase, empty string to omit.
phaseProb	- A double containing the optional classified phase probability, std::numeric_limits<double>::quiet_NaN() to omit
distance	- A double containing the optional classified distance, std::numeric_limits<double>::quiet_NaN() to omit
distanceProb	- A double containing the optional classified distance probability, std::numeric_limits<double>::quiet_NaN() to omit
azimuth	- A double containing the optional classified azimuth, std::numeric_limits<double>::quiet_NaN() to omit
azimuthProb	- A double containing the optional classified azimuth probability, std::numeric_limits<double>::quiet_NaN() to omit
depth	- A double containing the optional classified depth, std::numeric_limits<double>::quiet_NaN() to omit
depthProb	- A double containing the optional classified depth probability, std::numeric_limits<double>::quiet_NaN() to omit
magnitude	- A double containing the optional classified magnitude, std::numeric_limits<double>::quiet_NaN() to omit
magnitudeProb	- A double containing the optional classified magnitude probability, std::numeric_limits<double>::quiet_NaN() to omit

Returns: Returns true if successful, false otherwise.

bool glasscore::CPick::nucleate ( CPickList * parentThread )

Attempt to nucleate new hypo based on the addition of this pick.

Attempt to nucleate a new hypo based on the addition of this pick. By scanning all nodes linked to this pick's site, producing a list of triggers. Then, for the best trigger for each web, try to generate a new hypo, performing a fast location/prune using hypo->anneal

Parameters

parentThread - A pointer to the parent CPickList thread to allow nucleate to call the CPickList thread status update function, the owner of this pointer is the CPickList object

Returns: Returns true if successful, false otherwise

void glasscore::CPick::removeHypoReference ( std::shared_ptr< CHypo > hyp )

Remove hypo reference to this pick.

Remove a weak_ptr reference to the given hypo from this pick, breaking the graph database link between this pick and the hypocenter.

Note that this pick may or may not still be included in other hypocenter pick data lists.

Parameters

hyp	- A std::shared_ptr to an object containing the hypocenter to unlink.

void glasscore::CPick::removeHypoReference ( std::string pid )

Remove hypo specific reference to this pick by id.

Remove a weak_ptr reference to the given hypo id from this pick, breaking the graph database link between this pick and the hypocenter.

Note that this pick may or may not still be included in other hypocenter pick data lists.

Parameters

pid	- A std::string identifying the the hypocenter to unlink.

void glasscore::CPick::setTFirstAssociation ( )

protected

Set the first-assoc time for this pick to Now.

void glasscore::CPick::setTNucleation ( )

protected

Set the nucleation time for this pick to Now.

void glasscore::CPick::setTPick ( double tPick )

Set the arrival time for this pick.

Parameters

tPick - a double containing the pick arrival time

void glasscore::CPick::setTSort ( double newTSort )

Set the sorting time for this pick.

Parameters

newTSort - a double containing the pick sort time in Gregorian seconds

The documentation for this class was generated from the following files:

glasscore/glasslib/include/Pick.h
glasscore/glasslib/src/Pick.cpp

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
