glasscore::CSite Class Reference

glasscore site (station) class More...

#include <Site.h>

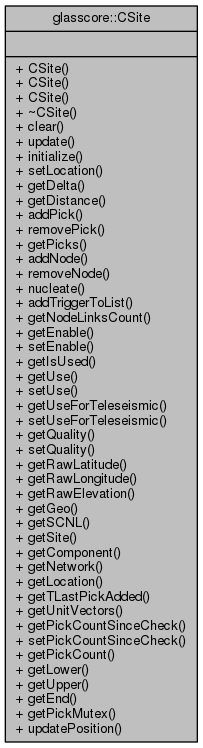

Collaboration diagram for glasscore::CSite:

Public Member Functions
	CSite ()
	CSite default constructor. More...
	CSite (std::string sta, std::string comp, std::string net, std::string loc, double lat, double lon, double elv, double qual, bool enable, bool useTele)
	CSite advanced constructor. More...
	CSite (std::shared_ptr< json::Object > site)
	CSite advanced constructor. More...
	~CSite ()
	CSite destructor. More...
void	clear ()
	CSite clear function. More...
void	update (CSite *site)
	CSite update function. More...
bool	initialize (std::string sta, std::string comp, std::string net, std::string loc, double lat, double lon, double elv, double qual, bool enable, bool use, bool useTele)
	CSite initialization function. More...
void	setLocation (double lat, double lon, double z)
	Set the site's location This function sets the geographic location of the site to the provided latitude, longitude, and depth. More...
double	getDelta (glass3::util::Geo *geo2)
	Get the distance to the site This function calculates the distance between this site and the given geographic location in radians. More...
double	getDistance (std::shared_ptr< CSite > site)
	Get the distance between this site and another in km. More...
void	addPick (std::shared_ptr< CPick > pck)
	Add pick to this site This function adds the given pick to the list of picks made at this site. More...
void	removePick (std::shared_ptr< CPick > pck)
	Remove pick from this site This function removes the given pick from the list of picks made at this site. More...
std::vector< std::shared_ptr< CPick > >	getPicks (double t1, double t2)
	Get a vector of picks that fall within a time window. More...
void	addNode (std::shared_ptr< CNode > node, double distDeg, double travelTime1, std::string phase1, double travelTime2=-1, std::string phase2="")
	Add node to this site This function adds the given pick to the list of nodes serviced by this site. More...
void	removeNode (std::string nodeID)
	Remove pick from this site This function removes the given node from the list of nodes linked to this. More...
std::vector< std::shared_ptr< CTrigger > >	nucleate (double tpick, CPickList *parentThread)
	Try to nucleate a new event at nodes linked to site This function cycles through each node linked to this site, computes the PDF at each node, and identifies the node with the best PDF. More...
void	addTriggerToList (std::vector< std::shared_ptr< CTrigger >> *vTrigger, std::shared_ptr< CTrigger > trigger)
	Add triggering node to triggered node list if value exceeds current value of if named node's web is not yet present. More...
int	getNodeLinksCount () const
	Gets the number of nodes linked to this site. More...
bool	getEnable () const
	Gets whether this site is enabled. Enable represents whether this site should be used according to sources outside glasscore. More...
void	setEnable (bool enable)
	Sets whether this site is enabled. Enable represents whether this site should be used according to sources outside glasscore. More...
bool	getIsUsed () const
	Gets whether this site should be used for picks and nucleation. (m_bUse && m_bEnable) Use represents whether the site should be used according to glasscore's internal metrics. More...
bool	getUse () const
	Gets whether this site is used. More...
void	setUse (bool use)
	Sets whether this site should be used for picks and nucleation. Use represents whether the site should be used according to glasscore's internal metrics. More...
bool	getUseForTeleseismic () const
	Gets whether this site should be used for nucleation web generation where UseOnlyTeleseismicStations is set for a web. More...
void	setUseForTeleseismic (bool useForTele)
	Sets whether this site should be used for nucleation web generation where UseOnlyTeleseismicStations is set for a web. More...
double	getQuality () const
	Get the station quality metric. More...
void	setQuality (double qual)
	Set the station quality metric. More...
double	getRawLatitude () const
	Get the station raw latitude. More...
double	getRawLongitude () const
	Get the station raw longitude. More...
double	getRawElevation () const
	Get the station raw elevation. More...
glass3::util::Geo &	getGeo ()
	Get the combined site location (latitude, longitude, elevation) as a CGeo object. More...
const std::string &	getSCNL () const
	Get the SCNL identifier for this site. More...
const std::string &	getSite () const
	Get the Site (station) name for this site. More...
const std::string &	getComponent () const
	Get the component code for this site. More...
const std::string &	getNetwork () const
	Get the network code for this site. More...
const std::string &	getLocation () const
	Get the location code for this site. More...
time_t	getTLastPickAdded () const
	Get the time the last pick was added to this site. More...
double *	getUnitVectors (double *vec)
	Get the location unit vectors. More...
int	getPickCountSinceCheck () const
	Get the count of picks added to this site since the last check. More...
void	setPickCountSinceCheck (int count)
	Set the count of picks added to this site since the last check. More...
int	getPickCount () const
	Gets the number of picks made at this site. More...
std::multiset< std::shared_ptr< CPick >, SitePickCompare >::iterator	getLower (double min)
	Gets the lower bound of the pick multiset at the provided time. More...
std::multiset< std::shared_ptr< CPick >, SitePickCompare >::iterator	getUpper (double max)
	Gets the upper bound of the pick multiset at the provided time. More...
std::multiset< std::shared_ptr< CPick >, SitePickCompare >::iterator	getEnd ()
	Gets the end iterator of the pick multiset. More...
std::mutex &	getPickMutex ()
	Gets pick multiset mutex. More...
void	updatePosition (std::shared_ptr< CPick > pick)
	A PickList function that updates the position of the given pick in the multiset. More...

Detailed Description

glasscore site (station) class

The CSite class is the class that encapsulates everything necessary to represent a seismic station (site), including geographic location identifier (SCNL), and use/nouse flag. The CSite class is also a node in the detection graph database.

CSite maintains graph database links between it and one or more detection nodes

CSite maintains a list of picks made at the site

CSite contains function to support nucleation of a new event based on a potential origin time and each of the detection nodes linked to the site.

CPick also maintains a vector of CHypo objects represent the graph database links between this pick and various hypocenters. A single pick may be linked to multiple hypocenters

CSite uses smart pointers (std::shared_ptr).

Constructor & Destructor Documentation

glasscore::CSite::CSite

(

)

CSite default constructor.

The default constructor for the CSite class. Initializes members to default values.

glasscore::CSite::CSite	(	std::string	sta,
		std::string	comp,
		std::string	net,
		std::string	loc,
		double	lat,
		double	lon,
		double	elv,
		double	qual,
		bool	enable,
		bool	useTele
	)

CSite advanced constructor.

An advanced constructor for the CSite class. This function initializes members to the provided SCNL, Lat/Lon/elv, qual, and use-flags values

Parameters

sta	- A string containing the station name for this site.
comp	- A string containing the component code for this site.
net	- A string containing the network code for this site.
loc	- A string containing the location code for this site.
lat	- A double value containing the geographic latitude of this site in degrees
lon	- A double value containing the geographic longitude of this site in degrees
elv	- A double value containing the geographic elevation of this site in meters
qual	- A double value containing a station quality estimate
enable	- A boolean flag indicating whether the site is to be enabled or not
useTele	- A boolean flag indicating whether the site is to be used for teleseismic or not

glasscore::CSite::CSite ( std::shared_ptr< json::Object >  site )

explicit

CSite advanced constructor.

An advanced constructor for the CSite class. This function initializing members to the values parsed from the provided json object.

Parameters

site	- A shared_ptr to a json::Object to construct the site from

glasscore::CSite::~CSite

(

)

CSite destructor.

Member Function Documentation

void glasscore::CSite::addNode	(	std::shared_ptr< CNode >	node,
		double	distDeg,
		double	travelTime1,
		std::string	phase1,
		double	travelTime2 = -1,
		std::string	phase2 = ""
	)

Add node to this site This function adds the given pick to the list of nodes serviced by this site.

Parameters

node	- A shared_ptr to a CNode object containing the node to add
distDeg	- A double value containing the distance between the node and this site in degrees
travelTime1	- A double value containing the first travel time to use
phase1	- A std::string containing the first travel time phase code
travelTime2	- A double value containing the optional second travel
phase2	- A std::string containing the second travel time phase code, defaults to "" (no travel time) time to use for the link, defaults to -1 (no travel time)

void glasscore::CSite::addPick

(

std::shared_ptr< CPick >

pck

)

Add pick to this site This function adds the given pick to the list of picks made at this site.

Parameters

pck	- A shared_ptr to a CPick object containing the pick to add

void glasscore::CSite::addTriggerToList	(	std::vector< std::shared_ptr< CTrigger >> *	vTrigger,
		std::shared_ptr< CTrigger >	trigger
	)

Add triggering node to triggered node list if value exceeds current value of if named node's web is not yet present.

Parameters

vTrigger	- a pointer to a vector of shared_ptr's containing the current list of triggers
trigger	- a shared_ptr to the new CTrigger to add to the list

void glasscore::CSite::clear

(

)

CSite clear function.

const std::string & glasscore::CSite::getComponent

(

)

const

Get the component code for this site.

Returns

Returns a std::string containing the component code for this site

double glasscore::CSite::getDelta

(

glass3::util::Geo *

geo2

)

Get the distance to the site This function calculates the distance between this site and the given geographic location in radians.

Parameters

geo2	- A pointer to a CGeo object containing the geographic location

Returns

Returns a double value containing the distance in radians

double glasscore::CSite::getDistance

(

std::shared_ptr< CSite >

site

)

Get the distance between this site and another in km.

Parameters

site	- A pointer to another site

Returns

Returns a double value containing the distance in km

bool glasscore::CSite::getEnable

(

)

const

Gets whether this site is enabled. Enable represents whether this site should be used according to sources outside glasscore.

Returns

Returns a boolean flag indicating whether the site is enabled, true if enabled, false otherwise

std::multiset< std::shared_ptr< CPick >, SitePickCompare >::iterator glasscore::CSite::getEnd

(

)

Gets the end iterator of the pick multiset.

Returns

Returns an interator pointing to end of the multiset i.e. end()

glass3::util::Geo & glasscore::CSite::getGeo

(

)

Get the combined site location (latitude, longitude, elevation) as a CGeo object.

Returns

Returns a glass3::util::Geo object containing the combined location.

bool glasscore::CSite::getIsUsed

(

)

const

Gets whether this site should be used for picks and nucleation. (m_bUse && m_bEnable) Use represents whether the site should be used according to glasscore's internal metrics.

Returns

Returns a boolean flag indicating whether the site should be used, true if yes, false otherwise

const std::string & glasscore::CSite::getLocation

(

)

const

Get the location code for this site.

Returns

Returns a std::string containing the location code for this site

std::multiset< std::shared_ptr< CPick >, SitePickCompare >::iterator glasscore::CSite::getLower

(

double

min

)

Gets the lower bound of the pick multiset at the provided time.

Parameters

min	- a double value containing the desired time to generate the lower value at in Gregorian seconds

Returns

Returns an interator pointing to the first pick in the multiset greater than the provided time

const std::string & glasscore::CSite::getNetwork

(

)

const

Get the network code for this site.

Returns

Returns a std::string containing the network code for this site

int glasscore::CSite::getNodeLinksCount

(

)

const

Gets the number of nodes linked to this site.

Returns

Returns an integer containing the number of nodes linked to this site

int glasscore::CSite::getPickCount

(

)

const

Gets the number of picks made at this site.

Returns

Returns an integer containing the number of picks made at this site

int glasscore::CSite::getPickCountSinceCheck

(

)

const

Get the count of picks added to this site since the last check.

Returns

Returns an integer containing the count of picks added to this site since the last check

std::mutex & glasscore::CSite::getPickMutex

(

)

Gets pick multiset mutex.

Returns

Returns the std::mutex protecting the pick multiset

std::vector< std::shared_ptr< CPick > > glasscore::CSite::getPicks	(	double	t1,
		double	t2
	)

Get a vector of picks that fall within a time window.

Get a vector of picks that fall within the provided time window from t1 to t2

Parameters

t1	- A double value containing the beginning of the time window in Gregorian seconds
t2	- A double value containing the end of the time window in Gregorian seconds

Returns

Return a std::vector of std::weak_ptrs to the picks within the time window

double glasscore::CSite::getQuality

(

)

const

Get the station quality metric.

Returns

Returns a double value containing the station quality metric

double glasscore::CSite::getRawElevation

(

)

const

Get the station raw elevation.

Returns

Returns a double value containing the raw (original) elevation for the station

double glasscore::CSite::getRawLatitude

(

)

const

Get the station raw latitude.

Returns

Returns a double value containing the raw (original) latitude for the station

double glasscore::CSite::getRawLongitude

(

)

const

Get the station raw longitude.

Returns

Returns a double value containing the raw (original) longitude for the station

const std::string & glasscore::CSite::getSCNL

(

)

const

Get the SCNL identifier for this site.

Returns

Returns a std::string containing the SCNL identifier for this site

const std::string & glasscore::CSite::getSite

(

)

const

Get the Site (station) name for this site.

Returns

Returns a std::string containing the station name for this site

time_t glasscore::CSite::getTLastPickAdded

(

)

const

Get the time the last pick was added to this site.

Returns

Returns a time_t containing the time that the last pick was added to this site in epoch seconds

double * glasscore::CSite::getUnitVectors

(

double *

vec

)

Get the location unit vectors.

Returns

Returns a double pointer containing the location unit vectors in Cartesian earth coordinates

std::multiset< std::shared_ptr< CPick >, SitePickCompare >::iterator glasscore::CSite::getUpper

(

double

max

)

Gets the upper bound of the pick multiset at the provided time.

Parameters

max	- a double value containing the desired time to generate the upper value at in Gregorian seconds

Returns

Returns an interator pointing to the first pick in the multiset less than the provided time

bool glasscore::CSite::getUse

(

)

const

Gets whether this site is used.

Returns

Returns a boolean flag indicating whether the site is used, true if so, false otherwise

bool glasscore::CSite::getUseForTeleseismic

(

)

const

Gets whether this site should be used for nucleation web generation where UseOnlyTeleseismicStations is set for a web.

Returns

Returns a boolean flag indicating whether the site is used for nucleation web generation, true if enabled, false otherwise

bool glasscore::CSite::initialize	(	std::string	sta,
		std::string	comp,
		std::string	net,
		std::string	loc,
		double	lat,
		double	lon,
		double	elv,
		double	qual,
		bool	enable,
		bool	use,
		bool	useTele
	)

CSite initialization function.

Initializes site class to provided values.

Parameters

sta	- A string containing the station code for this site.
comp	- A string containing the component code for this site.
net	- A string containing the network code for this site.
loc	- A string containing the location code for this site.
lat	- A double value containing the geographic latitude of this site in degrees
lon	- A double value containing the geographic longitude of this site in degrees
elv	- A double value containing the geographic elevation of this site in meters
qual	- A double value containing a station quality estimate
enable	- A boolean flag indicating whether the site is to be enabled or not
use	- A boolean flag indicating whether the site is to be used (internally) or not
useTele	- A boolean flag indicating whether the site is to be used for teleseismic or not

Returns

Returns true if successful, false otherwise

std::vector< std::shared_ptr< CTrigger > > glasscore::CSite::nucleate	(	double	tpick,
		CPickList *	parentThread
	)

Try to nucleate a new event at nodes linked to site This function cycles through each node linked to this site, computes the PDF at each node, and identifies the node with the best PDF.

The function uses addTrigger to keep track of triggering nodes

Parameters

tpick	- A double value containing the pick time to nucleate with in Gregorian seconds
parentThread	- A pointer to the parent CPickList thread to allow nucleate to call the CPickList thread status update function, the owner of this pointer is the CPickList object

Returns

Returns a vector of shared_ptrs to the CTriggers generated by nucleate.

void glasscore::CSite::removeNode

(

std::string

nodeID

)

Remove pick from this site This function removes the given node from the list of nodes linked to this.

Parameters

nodeID

- A string with the id of the node to remove

void glasscore::CSite::removePick

(

std::shared_ptr< CPick >

pck

)

Remove pick from this site This function removes the given pick from the list of picks made at this site.

Parameters

pck	- A shared_ptr to a CPick object containing the pick to remove

void glasscore::CSite::setEnable

(

bool

enable

)

Sets whether this site is enabled. Enable represents whether this site should be used according to sources outside glasscore.

Parameters

enable

- A boolean flag indicating whether the site is enabled, true if enabled, false otherwise

void glasscore::CSite::setLocation	(	double	lat,
		double	lon,
		double	z
	)

Set the site's location This function sets the geographic location of the site to the provided latitude, longitude, and depth.

Parameters

lat	- A double value containing the latitude in degrees to use.
lon	- A double value containing the longitude in degrees to use.
z	- A double value containing the surface depth in km to use.

void glasscore::CSite::setPickCountSinceCheck

(

int

count

)

Set the count of picks added to this site since the last check.

Parameters

count

- an integer containing the count of picks added to this site since the last check

void glasscore::CSite::setQuality

(

double

qual

)

Set the station quality metric.

Parameters

qual	- a double value containing the station quality metric

void glasscore::CSite::setUse

(

bool

use

)

Sets whether this site should be used for picks and nucleation. Use represents whether the site should be used according to glasscore's internal metrics.

Parameters

use	- a boolean flag indicating whether the site is used, true if enabled, false otherwise

void glasscore::CSite::setUseForTeleseismic

(

bool

useForTele

)

Sets whether this site should be used for nucleation web generation where UseOnlyTeleseismicStations is set for a web.

Parameters

useForTele

- a boolean flag indicating whether the site is used for nucleation web generation, true if enabled, false otherwiseg

void glasscore::CSite::update

(

CSite *

site

)

CSite update function.

This function updates the CSite with the data contained in the provided CSite, while not modifying the data list

Parameters

site	- A pointer to a CSite object containing the site to update from.

void glasscore::CSite::updatePosition

(

std::shared_ptr< CPick >

pick

)

A PickList function that updates the position of the given pick in the multiset.

Parameters

pick	- A shared_ptr to the pick that needs a position update

---

The documentation for this class was generated from the following files:

• glasscore/glasslib/include/Site.h
• glasscore/glasslib/src/Site.cpp
